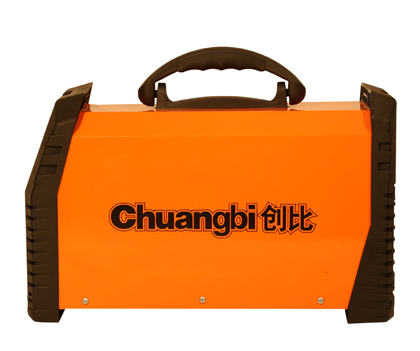

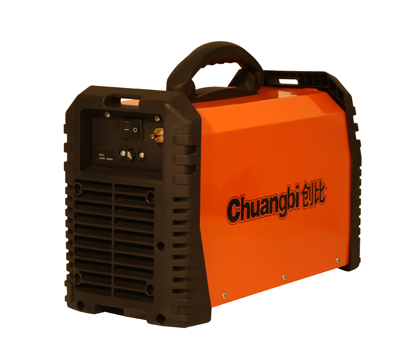

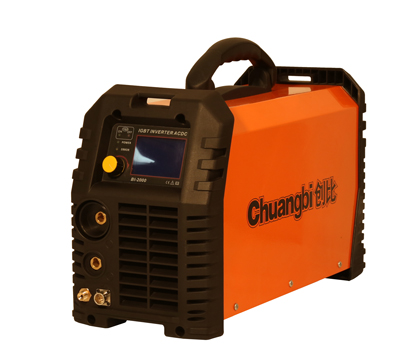

BI-2000
BI-2000
Product Presentation
Adopt IGBT ＆ advanced PWM inverter technology
Using high performance MCU,speedy,excellent real-time response
Digital display,easy operation
Each welding parameter can be adjusted in real-time
Intelligent HF,brush strokes arc ignition technology,high success rate
Welding pluse parameters accurate
Intelligent protection function based on the fuzzy technology
Selective module:EMC,PULSE
(Add differernt function module,the parameter and weight will change)
| BI-2000 technical parameters | |
| Input Voltage(V) | 220/230/240 |
| Rated Input Current(A) | TIG26 MMA40.6 |
| Rated Input Power(KW) | TIG4.6 MMA7.2 |
| No Load Voltage(V) | 60 |
| Current Range(A) | 5-200 |
| Duty Cycle(25℃ 10min) | 200A40% 140A100% |
| Duty Cycle(40℃ 10min) | 200A25% 100A100% |
| Protection Class | IP23S |
| Insulation Class | F |
| Dimensions(mm) | 435×180×265 |
| Net Weight(kg) | 11 |
